Spring

Spring事件驱动过程分析

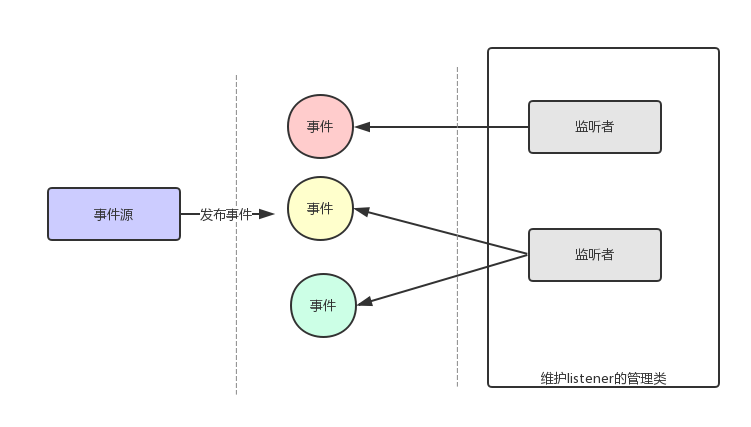

在看Spring源码之前确保理解了JDK中的 EventObject,EventListener的使用场景，其实体现的是观察者模式，适用于很多场景。

在Spring中，事件基类ApplicationEvent，在应用的周期中触发（发布）相应的事件。

public abstract class ApplicationEvent extends EventObject {

	/** use serialVersionUID from Spring 1.2 for interoperability */
	private static final long serialVersionUID = 7099057708183571937L;

	/** System time when the event happened */
	private final long timestamp;


	/**
	 * Create a new ApplicationEvent.
	 * @param source the object on which the event initially occurred (never {@code null})
	 */
	public ApplicationEvent(Object source) {
		super(source);
		this.timestamp = System.currentTimeMillis();
	}


	/**
	 * Return the system time in milliseconds when the event happened.
	 */
	public final long getTimestamp() {
		return this.timestamp;
	}

}

监听器基类如下，在接收到事件后如果是自己感兴趣的就进行相应处理。

public interface ApplicationListener<E extends ApplicationEvent> extends EventListener {

	/**
	 * Handle an application event.
	 * @param event the event to respond to
	 */
	void onApplicationEvent(E event);

}

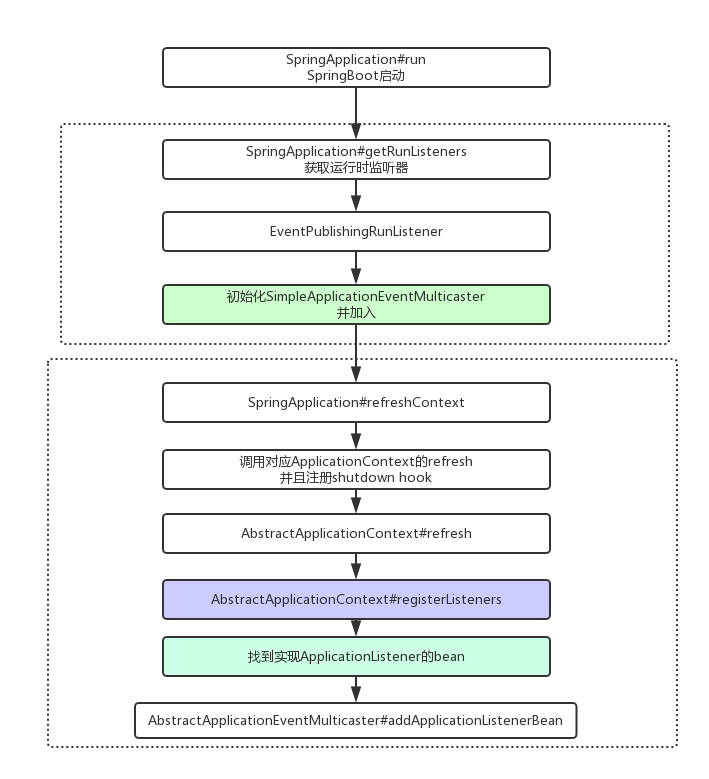

Spring boot在启动的时候会加载一部分 ApplicationListener。Spring Context加载初始化完成（refresh）后会再次检测应用中的 ApplicationListener，并且注册，此时会将我们实现的 ApplicationListener 就会加入到 SimpleApplicationEventMulticaster 维护的 Listener 集合中。 事件触发的流程是怎样的？以 ContextRefreshedEvent 为例。在Context初始化完成后，在 finishRefresh 方法中会发布 ContextRefreshedEvent 事件。

protected void finishRefresh() {
    // Initialize lifecycle processor for this context.
    initLifecycleProcessor();

    // Propagate refresh to lifecycle processor first.
    getLifecycleProcessor().onRefresh();

    // Publish the final event.
    publishEvent(new ContextRefreshedEvent(this));

    // Participate in LiveBeansView MBean, if active.
    LiveBeansView.registerApplicationContext(this);
}
protected void publishEvent(Object event, ResolvableType eventType) {
    // Decorate event as an ApplicationEvent if necessary
    ApplicationEvent applicationEvent;
    if (event instanceof ApplicationEvent) {
        applicationEvent = (ApplicationEvent) event;
    }
    else {
        applicationEvent = new PayloadApplicationEvent<Object>(this, event);
        if (eventType == null) {
            eventType = ((PayloadApplicationEvent)applicationEvent).getResolvableType();
        }
    }

    // Multicast right now if possible - or lazily once the multicaster is initialized
    if (this.earlyApplicationEvents != null) {
        this.earlyApplicationEvents.add(applicationEvent);
    }
    else { // 多播事件
        getApplicationEventMulticaster().multicastEvent(applicationEvent, eventType);
    }

    // Publish event via parent context as well... 上层的Context也会响应该事件
    if (this.parent != null) {
        if (this.parent instanceof AbstractApplicationContext) {
            ((AbstractApplicationContext) this.parent).publishEvent(event, eventType);
        }
        else {
            this.parent.publishEvent(event);
        }
    }
}
public void multicastEvent(final ApplicationEvent event, ResolvableType eventType) {
    ResolvableType type = (eventType != null ? eventType : resolveDefaultEventType(event));
    for (final ApplicationListener<?> listener : getApplicationListeners(event, type)) {
        Executor executor = getTaskExecutor();
        // 如果设置了 Executor 则异步执行
        if (executor != null) {
            executor.execute(new Runnable() {
                @Override
                public void run() {
                    invokeListener(listener, event);
                }
            });
        }
        else {// 否则同步调用listener的事件处理方法
            invokeListener(listener, event);
        }
    }
}

内部 listener 是如何维护的？使用的哪种集合？是否线程安全？

org.springframework.context.event.AbstractApplicationEventMulticaster.ListenerRetriever

private class ListenerRetriever {
    // 这里
    public final Set<ApplicationListener<?>> applicationListeners;

    public final Set<String> applicationListenerBeans;

    private final boolean preFiltered;

    public ListenerRetriever(boolean preFiltered) {
        this.applicationListeners = new LinkedHashSet<ApplicationListener<?>>();
        this.applicationListenerBeans = new LinkedHashSet<String>();
        this.preFiltered = preFiltered;
    }

    public Collection<ApplicationListener<?>> getApplicationListeners() {
        LinkedList<ApplicationListener<?>> allListeners = new LinkedList<ApplicationListener<?>>();

        for (ApplicationListener<?> listener : this.applicationListeners) {
            allListeners.add(listener);
        }

        if (!this.applicationListenerBeans.isEmpty()) {
            BeanFactory beanFactory = getBeanFactory();
            for (String listenerBeanName : this.applicationListenerBeans) {
                try {
                    ApplicationListener<?> listener = beanFactory.getBean(listenerBeanName, ApplicationListener.class);
                    if (this.preFiltered || !allListeners.contains(listener)) {
                        allListeners.add(listener);
                    }
                }
                catch (NoSuchBeanDefinitionException ex) {
                    // Singleton listener instance (without backing bean definition) disappeared -
                    // probably in the middle of the destruction phase
                }
            }
        }
        // 根据Order注解排序
        AnnotationAwareOrderComparator.sort(allListeners);
        return allListeners;
    }
}

在增加元素到Set的时候有同步操作。

// 使用 ListenerRetriever 作为加锁对象
private Object retrievalMutex = this.defaultRetriever;

public void addApplicationListener(ApplicationListener<?> listener) {
    synchronized (this.retrievalMutex) {
        this.defaultRetriever.applicationListeners.add(listener);
        this.retrieverCache.clear();
    }
}

public void addApplicationListenerBean(String listenerBeanName) {
    synchronized (this.retrievalMutex) {
        this.defaultRetriever.applicationListenerBeans.add(listenerBeanName);
        this.retrieverCache.clear();
    }
}
