RabbitMQ 消息确认机制

生产端 Confirm 消息确认机制

消息的确认,是指生产者投递消息后,如果 Broker 收到消息,则会给我们生产者一个应答。生产者进行接收应答,用来确定这条消息是否正常的发送到 Broker ,这种方式也是消息的可靠性投递的核心保障!

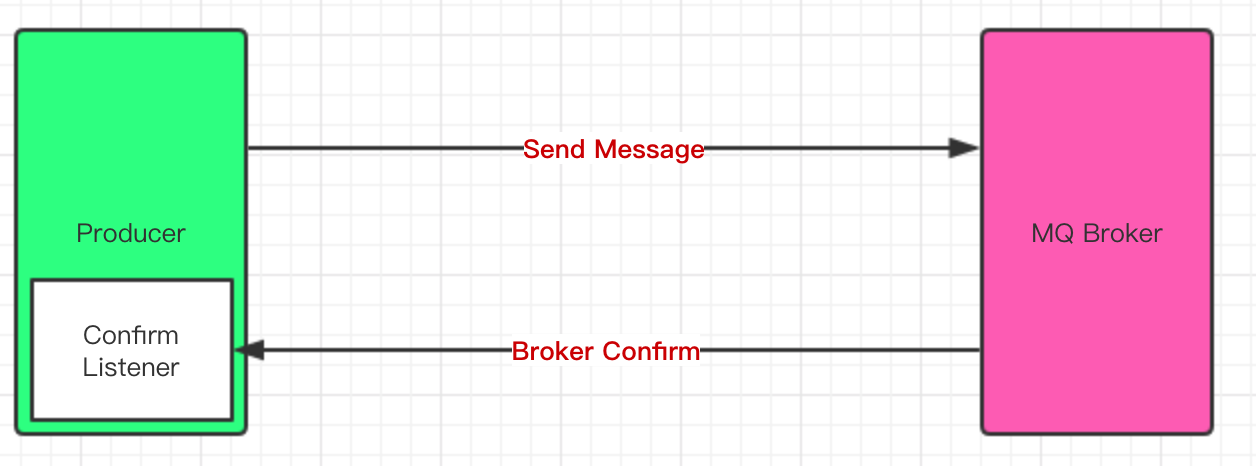

Confirm 确认机制流程图


如何实现Confirm确认消息?

import com.rabbitmq.client.Channel;
import com.rabbitmq.client.ConfirmListener;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;

import java.io.IOException;

public class ConfirmProducer {
    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");

        Connection connection = factory.newConnection();

        Channel channel = connection.createChannel();

        String exchangeName = "test_confirm_exchange";
        String routingKey = "item.update";

        //指定消息的投递模式:confirm 确认模式
        channel.confirmSelect();

        //发送
        final long start = System.currentTimeMillis();
        for (int i = 0; i < 5 ; i++) {
            String msg = "this is confirm msg ";
            channel.basicPublish(exchangeName, routingKey, null, msg.getBytes());
            System.out.println("Send message : " + msg);
        }

        //添加一个确认监听, 这里就不关闭连接了,为了能保证能收到监听消息
        channel.addConfirmListener(new ConfirmListener() {
            /**
             * 返回成功的回调函数
             */
            public void handleAck(long deliveryTag, boolean multiple)
                throws IOException {
                System.out.println("succuss ack");
                System.out.println(multiple);
                System.out.println("耗时:" + (System.currentTimeMillis() - start) + "ms");
            }
            /**
             * 返回失败的回调函数
             */
            public void handleNack(long deliveryTag, boolean multiple)
                throws IOException {
                System.out.printf("defeat ack");
                System.out.println("耗时:" + (System.currentTimeMillis() - start) + "ms");
            }
        });
    }
}
import com.rabbitmq.client.*;
import java.io.IOException;

public class ConfirmConsumer {
    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");
        factory.setAutomaticRecoveryEnabled(true);
        factory.setNetworkRecoveryInterval(3000);

        Connection connection = factory.newConnection();

        Channel channel = connection.createChannel();

        String exchangeName = "test_confirm_exchange";
        String queueName = "test_confirm_queue";
        String routingKey = "item.#";
        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, false, false, false, null);

        //一般不用代码绑定,在管理界面手动绑定
        channel.queueBind(queueName, exchangeName, routingKey);

        //创建消费者并接收消息
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body)
                throws IOException {
                String message = new String(body, "UTF-8");
                System.out.println(" [x] Received '" + message + "'");
            }
        };

        //设置 Channel 消费者绑定队列
        channel.basicConsume(queueName, true, consumer);

    }
}

我们此处只关注生产端输出消息

CopySend message : this is confirm msg
Send message : this is confirm msg
Send message : this is confirm msg
Send message : this is confirm msg
Send message : this is confirm msg
succuss ack
true
耗时:3ms
succuss ack
true
耗时:4ms

注意事项

Copy  succuss ack
  true
  耗时:3ms
  succuss ack
  false
  耗时:4ms

  或者
  succuss ack
  true
  耗时:3ms

Return 消息机制

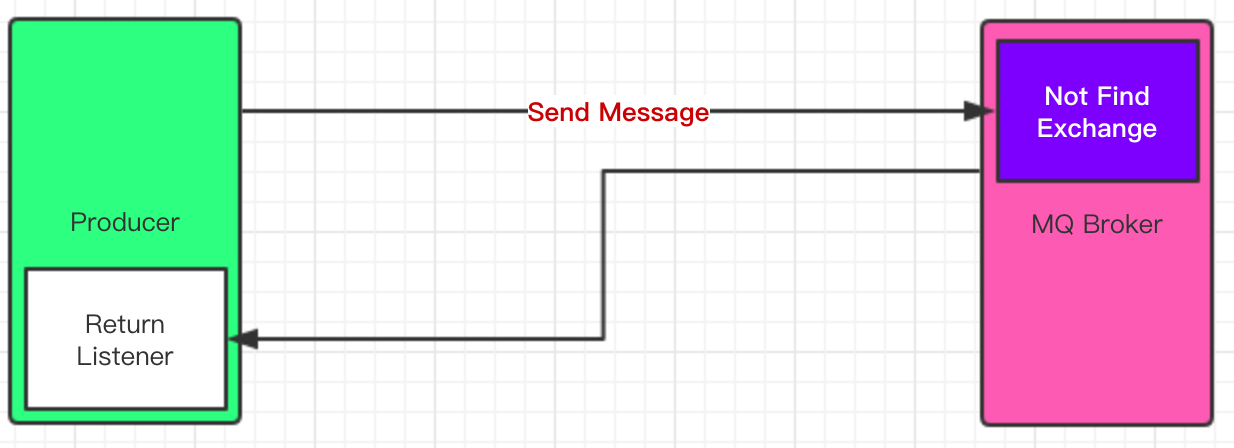

Return 消息机制流程图


Return 消息示例

import com.rabbitmq.client.*;
import java.io.IOException;

public class ReturnListeningProducer {
    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");

        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        String exchangeName = "test_return_exchange";
        String routingKey = "item.update";
        String errRoutingKey = "error.update";

        //指定消息的投递模式:confirm 确认模式
        channel.confirmSelect();

        //发送
        for (int i = 0; i < 3 ; i++) {
            String msg = "this is return——listening msg ";
            //@param mandatory 设置为 true 路由不可达的消息会被监听到,不会被自动删除
            if (i == 0) {
                channel.basicPublish(exchangeName, errRoutingKey, true,null, msg.getBytes());
            } else {
                channel.basicPublish(exchangeName, routingKey, true, null, msg.getBytes());
            }
            System.out.println("Send message : " + msg);
        }

        //添加一个确认监听, 这里就不关闭连接了,为了能保证能收到监听消息
        channel.addConfirmListener(new ConfirmListener() {
            /**
             * 返回成功的回调函数
             */
            public void handleAck(long deliveryTag, boolean multiple) throws IOException {
                System.out.println("succuss ack");
            }
            /**
             * 返回失败的回调函数
             */
            public void handleNack(long deliveryTag, boolean multiple) throws IOException {
                System.out.printf("defeat ack");
            }
        });

        //添加一个 return 监听
        channel.addReturnListener(new ReturnListener() {
            public void handleReturn(int replyCode, String replyText, String exchange, String routingKey, AMQP.BasicProperties properties, byte[] body) throws IOException {
                System.out.println("return relyCode: " + replyCode);
                System.out.println("return replyText: " + replyText);
                System.out.println("return exchange: " + exchange);
                System.out.println("return routingKey: " + routingKey);
                System.out.println("return properties: " + properties);
                System.out.println("return body: " + new String(body));
            }
        });

    }
}
import com.rabbitmq.client.*;
import java.io.IOException;

public class ReturnListeningConsumer {
    public static void main(String[] args) throws Exception {
        //1. 创建一个 ConnectionFactory 并进行设置
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");
        factory.setAutomaticRecoveryEnabled(true);
        factory.setNetworkRecoveryInterval(3000);

        //2. 通过连接工厂来创建连接
        Connection connection = factory.newConnection();

        //3. 通过 Connection 来创建 Channel
        Channel channel = connection.createChannel();

        //4. 声明
        String exchangeName = "test_return_exchange";
        String queueName = "test_return_queue";
        String routingKey = "item.#";

        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, false, false, false, null);

        //一般不用代码绑定,在管理界面手动绑定
        channel.queueBind(queueName, exchangeName, routingKey);

        //5. 创建消费者并接收消息
        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body)
                throws IOException {
                String message = new String(body, "UTF-8");
                System.out.println(" [x] Received '" + message + "'");
            }
        };

        //6. 设置 Channel 消费者绑定队列
        channel.basicConsume(queueName, true, consumer);
    }
}

我们只关注生产端结果,消费端只收到两条消息。

CopySend message : this is return——listening msg
Send message : this is return——listening msg
Send message : this is return——listening msg
return relyCode: 312
return replyText: NO_ROUTE
return exchange: test_return_exchange
return routingKey: error.update
return properties: #contentHeader<basic>(content-type=null, content-encoding=null, headers=null, delivery-mode=null, priority=null, correlation-id=null, reply-to=null, expiration=null, message-id=null, timestamp=null, type=null, user-id=null, app-id=null, cluster-id=null)
return body: this is return——listening msg
succuss ack
succuss ack
succuss ack

消费端 Ack 和 Nack 机制

消费端进行消费的时候,如果由于业务异常我们可以进行日志的记录,然后进行补偿!如果由于服务器宕机等严重问题,那我们就需要手工进行ACK保障消费端消费成功!消费端重回队列是为了对没有处理成功的消息,把消息重新会递给Broker!一般我们在实际应用中,都会关闭重回队列,也就是设置为False。

参考 api

void basicNack(long deliveryTag, boolean multiple, boolean requeue) throws IOException;
void basicAck(long deliveryTag, boolean multiple) throws IOException;

如何设置手动 Ack 、Nack 以及重回队列

import com.rabbitmq.client.*;
import java.util.HashMap;
import java.util.Map;

public class AckAndNackProducer {
    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");

        Connection connection = factory.newConnection();
        Channel channel = connection.createChannel();

        String exchangeName = "test_ack_exchange";
        String routingKey = "item.update";

        String msg = "this is ack msg";
        for (int i = 0; i < 5; i++) {
            Map<String, Object> headers = new HashMap<String, Object>();
            headers.put("num" ,i);

            AMQP.BasicProperties properties = new AMQP.BasicProperties().builder()
                .deliveryMode(2)
                .headers(headers)
                .build();

            String tem = msg + ":" + i;

            channel.basicPublish(
                exchangeName, routingKey, true, properties, tem.getBytes());
            System.out.println("Send message : " + msg);
        }

        channel.close();
        connection.close();
    }
}
import com.rabbitmq.client.*;
import java.io.IOException;

public class AckAndNackConsumer {
    public static void main(String[] args) throws Exception {
        ConnectionFactory factory = new ConnectionFactory();
        factory.setHost("localhost");
        factory.setVirtualHost("/");
        factory.setUsername("guest");
        factory.setPassword("guest");
        factory.setAutomaticRecoveryEnabled(true);
        factory.setNetworkRecoveryInterval(3000);

        Connection connection = factory.newConnection();

        final Channel channel = connection.createChannel();

        String exchangeName = "test_ack_exchange";
        String queueName = "test_ack_queue";
        String routingKey = "item.#";
        channel.exchangeDeclare(exchangeName, "topic", true, false, null);
        channel.queueDeclare(queueName, false, false, false, null);

        //一般不用代码绑定,在管理界面手动绑定
        channel.queueBind(queueName, exchangeName, routingKey);

        Consumer consumer = new DefaultConsumer(channel) {
            @Override
            public void handleDelivery(String consumerTag, Envelope envelope,
                                       AMQP.BasicProperties properties, byte[] body)
                throws IOException {

                String message = new String(body, "UTF-8");
                System.out.println(" [x] Received '" + message + "'");

                try {
                    Thread.sleep(2000);
                } catch (InterruptedException e) {
                    e.printStackTrace();
                }

                if ((Integer) properties.getHeaders().get("num") == 0) {
                    channel.basicNack(envelope.getDeliveryTag(), false, true);
                } else {
                    channel.basicAck(envelope.getDeliveryTag(), false);
                }
            }
        };

        //6. 设置 Channel 消费者绑定队列
        channel.basicConsume(queueName, false, consumer);

    }
}

我们此处只关心消费端输出,可以看到第 0 条消费失败重新回到队列尾部消费。

Copy [x] Received 'this is ack msg:1'
 [x] Received 'this is ack msg:2'
 [x] Received 'this is ack msg:3'
 [x] Received 'this is ack msg:4'
 [x] Received 'this is ack msg:0'
 [x] Received 'this is ack msg:0'
 [x] Received 'this is ack msg:0'
 [x] Received 'this is ack msg:0'
 [x] Received 'this is ack msg:0'
